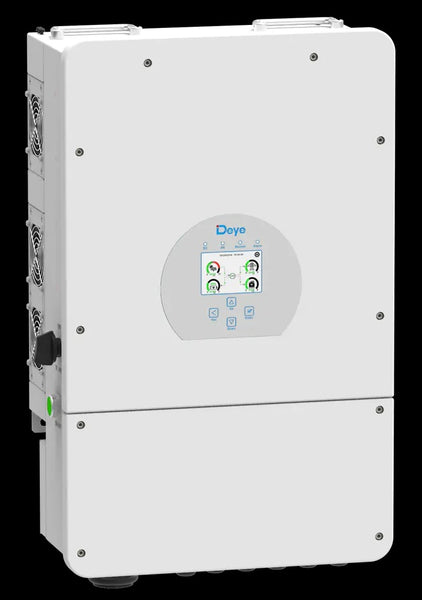

Deye: 8Kw Single Phase Hybrid Inverter

Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.

Package Includes WIFI Dongle & Current Transformer
Max Efficiency of 97.6%
2 MPPT (Maximum Power Point Tracker)
RS485 / CAN Communication Ports
Load or Home power first with Zero Export to the Grid
IP65 Ingress Protection
High Power Factor
AC Coupled
Supports Generator Connection
Six stages time of use setting
Support multiple parallels
Touchscreen Interface
Update existing solar on-grid system to a hybrid system
Use Gen input as crucial load output
Compatible with PYLONTECH, LG, BYD etc, brand battery
Output: 230V AC Single Phase @ 50Hz
PV Rapid Shutdown Control, PV Arc Fault detection, input lightning protection, multiple inverters in parallel
Multiple working modes: Grid-Tied, Hybrid or Off-Grid
Simultaneously manages power to / from Panels, Batteries, Grid, Load, and Generator
UPS time: less than 5ms
Charge and Discharge up to 190A, 7.6/8Kw (120A 5Kw, 135A 6Kw)
Wall Mounted
